*此产品已停售。查看科视Christie 现有的投影机产品系列。

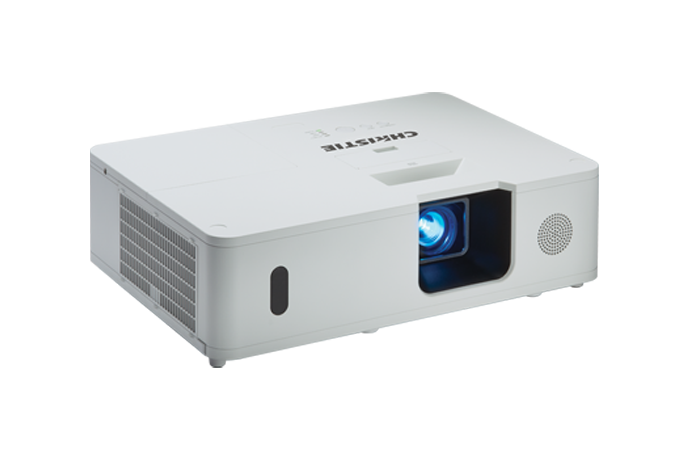

科视Christie® LW502 是一款功能丰富的 5,000 流明级 3LCD 投影机,集享誉业界的科视Christie 性能、紧凑的结构、简便的使用以及出色的附加值于一体。这款投影机采用长效灯泡(寿命长达 6,000 小时)和集成式音频系统,总拥有成本低,并能够轻松安装到教室或会议室中。
特性

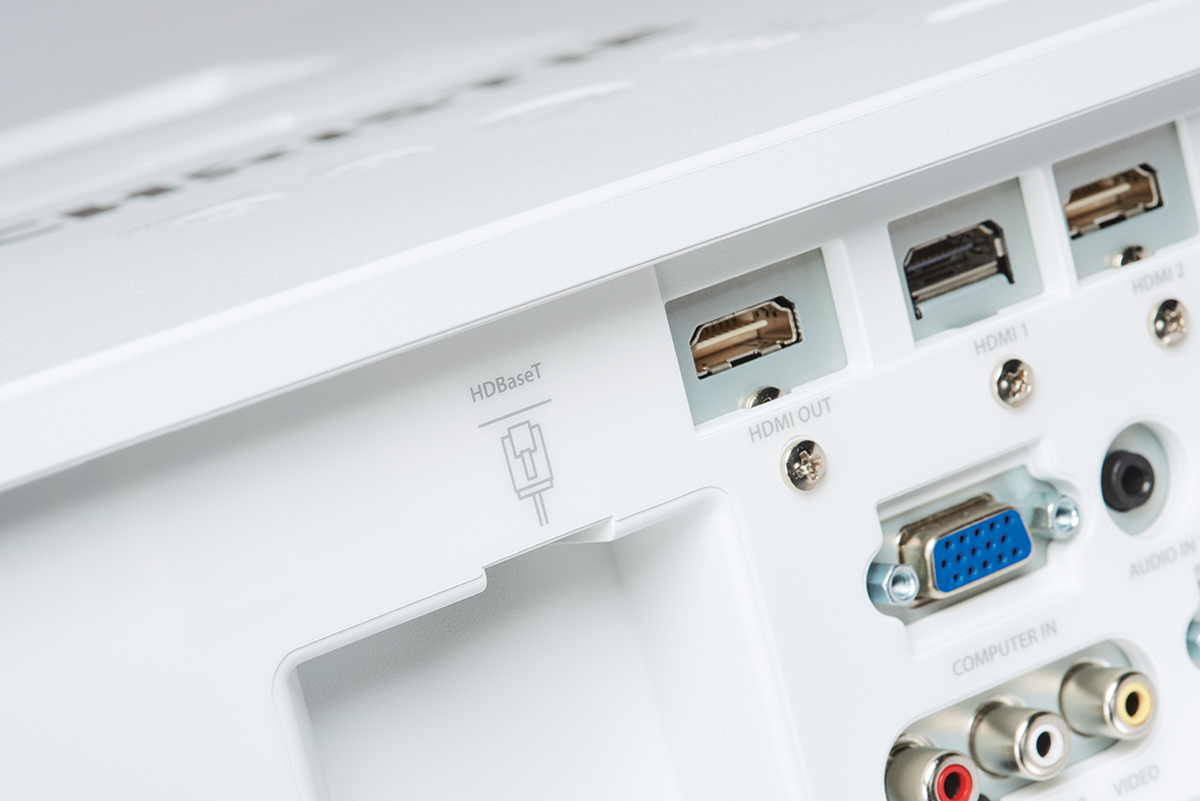

- 支持广泛的 I/O,包括 HDBaseT
- WXGA (1,280x800) 分辨率
- 5,000:1 对比度
- 16W 集成式音频系统
- 边缘融合与几何校正
- DICOM 模拟仿真模式
- 支持无线演示
- 使用和维护简单
- 享誉业界的质保和服务
规格
- 亮度(流明)
- - 中心——5,401
- - ANSI - 5,000
- - ISO - 5,525
- 对比度 (Contrast)
- - 5000:1
显示技术
- 3 x 0.59" 无机液晶显示屏
- 1,280 x 800 WXGA
灯泡
- 类型
- - 300W UHB
- 典型寿命
- - 正常模式:最长 4,000 小时
- - 节能模式:最长 6,000 小时
输入
- 信号
- - VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / SXGA+ / WSXGA+ / UXGA / WUXGA / MAC 16"
- - NTSC、NTSC4.43、PAL、PAL-M、PAL-N、SECAM
- - 480i、480p、576i、720p、1080i、1080p
- 扫描率
- - 水平:15-106 kHz
- - 垂直:60-120 Hz
- 标配
- - 计算机输入:15 针 D-sub x 1
- - 数字输入:HDMI x 2,HDBaseT x 1
- - 视频输入:复合视频 RCA 插孔 x 1,分量视频 15 针 D-sub x 1
- - 音频输入:3.5 mm 立体声迷你插孔 x 1,RCA 插孔(左/右)x 1
- - USB Type A x 1(用于无线网络)
输出
- - HDMI x 1
- - 15 针 D-sub x 1
- - 音频输出:3.5 mm 立体声迷你插孔 x 1
控制与联网
- 9 针 D-sub x 1 (RS-232C)
- RJ-45 端口 (HDBaseT)
因持续研发,规格和功能可能随时变更,恕不另行通知。
下载
Christie AP Series LW502/LWU502/LX602 User Manual-中文
2018 年 2 月 13 日 | 文件格式: PDF, 4.4 MB
Provides installation, operation, maintenance, and troubleshooting information for the Christie AP Series projectors in Simplified Chinese. Contact Christie technical support or your Christie Sales Manager if you require more information.
Christie AP Series LW502/LWU502/LX602 User Manual-汉语
2018 年 2 月 13 日 | 文件格式: PDF, 9 MB
Provides installation, operation, maintenance, and troubleshooting information for the Christie AP Series projectors in Traditional Chinese. Contact Christie technical support or your Christie Sales Manager if you require more information.
Christie AP Series LW502/LWU502/LX602 Network Guide-汉语
2018 年 2 月 12 日 | 文件格式: PDF, 7 MB
Provides network information for the Christie AP Series projectors. Contact Christie technical support or your Christie Sales Manager if you require more information.
Christie AP Series LW502/LWU502/LX602 Instant Stack Guide-中文
2018 年 2 月 12 日 | 文件格式: PDF, 1.7 MB
Provides installation, operation, and troubleshooting information for stacking the Christie AP Series projectors in Simplified Chinese. Contact Christie technical support or your Christie Sales Manager if you require more information.
Christie AP Series LW502/LWU502/LX602 Safety Guide-中文
2018 年 2 月 12 日 | 文件格式: PDF, 975 KB
Provides safety information for the Christie AP Series projectors. Contact Christie technical support or your Christie Sales Manager if you require more information.
Christie AP Series LW502/LWU502/LX602 Instant Stack Guide-汉语
2018 年 2 月 12 日 | 文件格式: PDF, 3.2 MB
Provides installation, operation, and troubleshooting information for stacking the Christie AP Series projectors in Traditional Chinese. Contact Christie technical support or your Christie Sales Manager if you require more information.
Christie AP Series LW502/LWU502/LX602 Safety Guide-汉语
2018 年 2 月 12 日 | 文件格式: PDF, 1.4 MB
Provides safety information for the Christie AP Series projectors. Contact Christie technical support or your Christie Sales Manager if you require more information.
Christie AP Series LW502/LWU502/LX602 Network Guide-中文
2018 年 2 月 12 日 | 文件格式: PDF, 3.7 MB
Provides network information for the Christie AP Series projectors. Contact Christie technical support or your Christie Sales Manager if you require more information.
Christie AP Series LW502/LWU502/LX602 Setup Guide-Multilingual
2018 年 2 月 12 日 | 文件格式: PDF, 26.2 MB
Provides technical user information for the Christie AP Series projectors. Contact Christie technical support or your Christie Sales Manager if you require more information.
