ISO 流明

13,500

中心流明

12,500

ANSI 流明

12,000

色轮

4 Segment (RGBY) - 2X or 3X speed

对比度

Full On/Off (Christie Real Black enabled): 750,000:1 , Full On/Off (Christie Real Black disabled): 1,200:1

动态对比度

7,500:1

显示类型

1 x 0.96" DMD

分辨率

WUXGA (1920 x 1200)

光源类型

Laser phosphor with Christie BoldColor Technology

光源性能（小时）

20,000

扫描率

Horizontal: 15-91kHz Vertical: 24-85Hz

像素时钟频率

162MHz

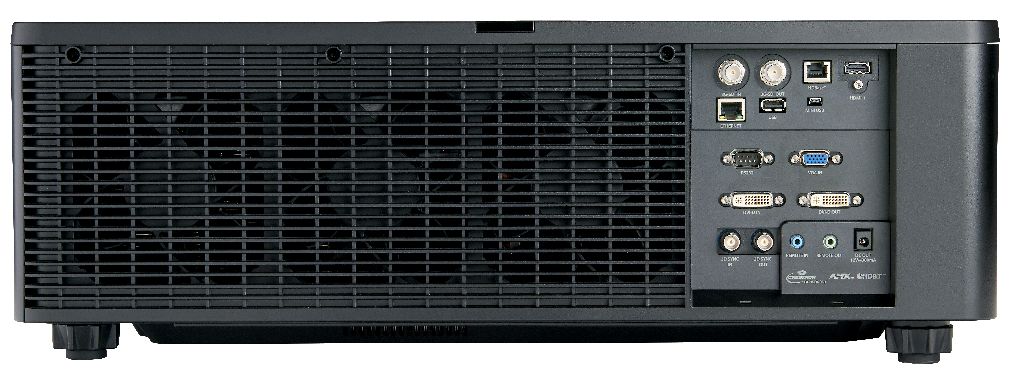

Signal inputs

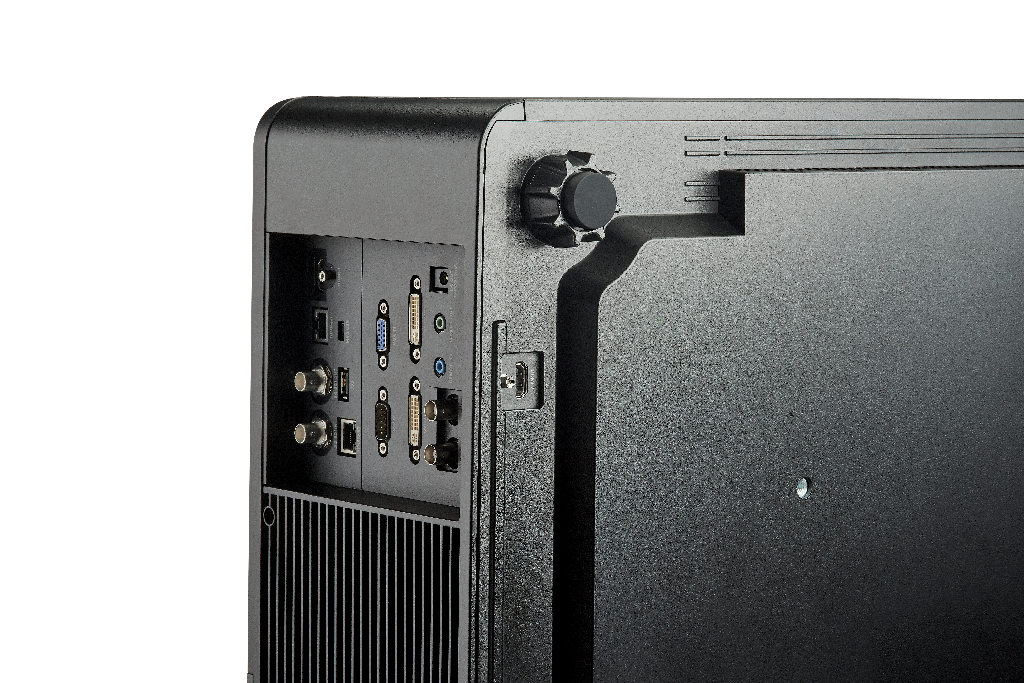

• - HDMI x 2 (one on rear panel, one on bottom of projector, independently selectable)
• - 3GSDI (BNC)
• - DVI-D (digital only)
• - HD15
• - USB (type A) - (WiFi dongle optional)
• - HDBaseT (RJ45)
• - RJ45 (ChristiePresenter over wired network connection)

3D inputs

• - HDMI 1.4, HDBaseT - frame packed, top/bottom, side-by-side
• - 1920 x 1080 at 120Hz output
• - 3D Sync In (BNC) - for genlocking projectors
• - 3D Sync Out (BNC) - for genlocking projectors or controlling emitters​
• - Horizontal and vertical scaling while maintaining aspect ratio, all inputs

Signal outputs

• - 3GSDI (BNC)
• - DVI-D (digital only)

Control and networking

• - RS232 In
• - Control via HDBaseT
• - Ethernet (10/100) RJ45

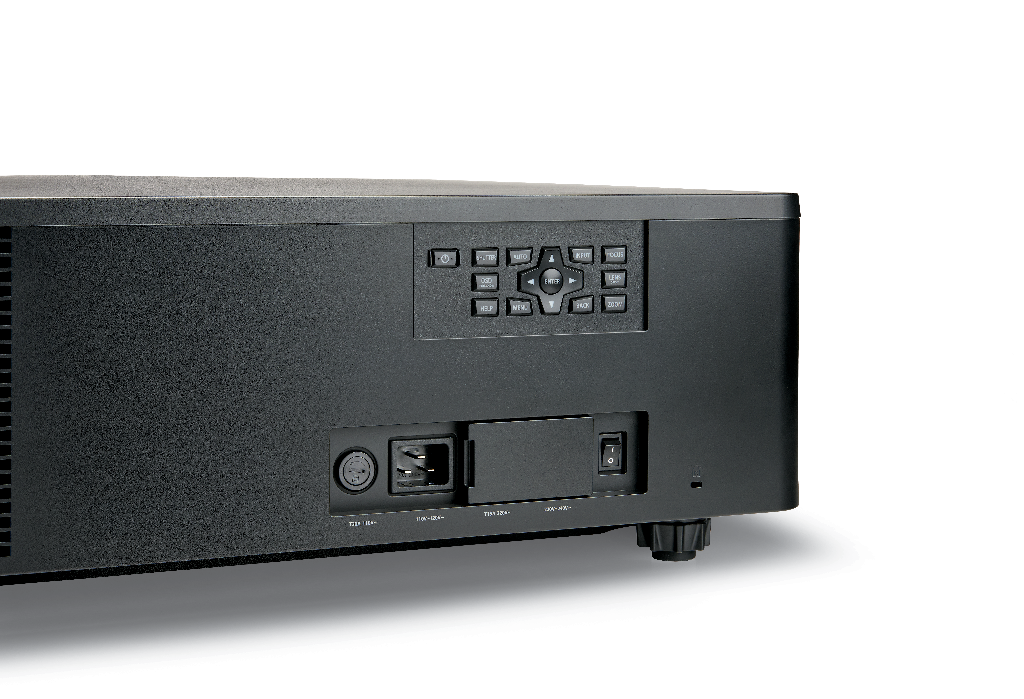

• - Built-in backlit keypad
• - Wired remote control (3.5mm stereo) - loop out available for daisy chaining

Lens mount

• - Boresight adjustable
• - Motorized horizontal and vertical lens offset (memory available)
• - Motorized zoom and focus adjustment (memory available for full ILS lenses)

Lens options

• Lenses:
• - 0.84-1.02:1 zoom lens (no zoom/focus memory) - adapted 1.2-1.5:1 E Series lens
• - 1.02-1.36:1 zoom lens (no zoom/focus memory) - adapted 1.5-2.0:1 E Series lens
• - 1.2-1.5:1 zoom lens (full ILS)
• - 1.5-2.0:1 zoom lens (full ILS)
• - 2.0-4.0:1 zoom lens (full ILS)
• - 4.0-7.0:1 zoom lens (full ILS)
• Offsets (Full ILS lenses)
• +/- 120% vertical (+/- 720 pixels)
• +/- 50% horizontal (+/- 480 pixels)
• Offsets 0.84-1.02:1:
• +37 / -60% vertical (+222/-363 pixels)
• +11 / -50% horizontal (+107/-480 pixels)
• Offsets 1.02-1.36:1:
• +125 / -98 % vertical (+676/-534 pixels)
• +42 / -47% horizontal (+408/-457 pixels)

Power requirements

• Operating voltage:
• - Normal: 100-120 VAC / 200-240VAC @ 60/50 Hz
• Power consumption:
• - Normal mode: 1220W +/-15% (220V), 1300W +/-15% (100V)
• - ECO1 mode: 1000W +/-15% (220V), 1050W +/-15%(100V)
• - ECO2 mode: 660W +/-15% (220V), 700W +/-15%(100V)
• Operating current:
• - Normal mode: 7A (200-240VAC), 14A (100-120VAC)
• Dissipation:
• - Normal mode: 4435 BTU/hr
• - ECO1 mode: 3580 BTU/hr
• - ECO2 mode: 2390 BTU/hr

Audible noise

• - Typical: 39dB(A)
• Eco mode: 37dB(A)

Dimensions (L x W x H)

• 26.65 x 23.46 x 7.99" without feet
• 677 x 596 x 203mm without feet
• Shipping dimensions
• 36.34 x 33.19 x 20.20"
• 923 x 843 x 513mm

Weight

• - 93.7 lb (42.5 kg)
• - Shipping weight: 119 lb (54 kg)

Operating environment

• - Temp: 0 to 40° C (32 to 104° F)
• - Humidity: 0 - 85% non-condensing

Regulatory

• Contact Christie for the timing of certifications:
• - TUV UL/CSA/IEC 60950-1 FCC Class A CE FDA CCC KC PSE CU SABS BIS VCCI RCM Ukr TER SASO
• - This product conforms to all relevant European directives, standards, safety, health and environmental concerns
• - RoHS REACH WEEE

Limited warranty

• - Three years parts and labor on the projector
• - Three years or 15,000 hours parts and labor on the illumination system*
• - Contact an authorized Christie representative for full details of our limited warranty
• - *Please reference the Christie Standard Limited Warranty document for details.

Accessories

• Standard:
• - IR remote w/ wired remote jack (wire not included)
• - AC line cords for projector head
• - User manual
• Optional:
• - 1DWUSB-BGN (wireless dongle for video and control)
• - HS fog filter covers + filters (order once per projector then only filters refills)
• - HS fog filter refills (1 set)
• - Replacement remote control
