Christie Mystique - Pro Venue Edition
Overview Specs Accessories Downloads

Christie® Mystique is a warping and blending tool that simplifies the deployment and maintenance of multi-projector systems by letting users easily and accurately align content on screens and surfaces in minutes. Pro Venue Edition is ideal for staging production companies, integrators and end users looking to easily and quickly align and recalibrate multi-projector arrays, including stacks and blends in temporary or fixed installations, as well as stages and sports playing surfaces.

A simple interface guides users through a step-by-step process and provides real-time feedback. Users can achieve professional, high-quality results working with complex projection arrays, with no experience required. Working in conjunction with Christie Twist®, Pro Venue Edition enables the seamless warping and blending in a single display in less than two minutes per projector.

Improve overall image fidelity and uniformity

Automated color and brightness uniformity1 At the click of a mouse, you can adjust color and brightness uniformity across projectors in multi-projector blended arrays to display one seamless image2, ensure a quality audience experience and save time when setting up your display.

Automated color and brightness uniformity

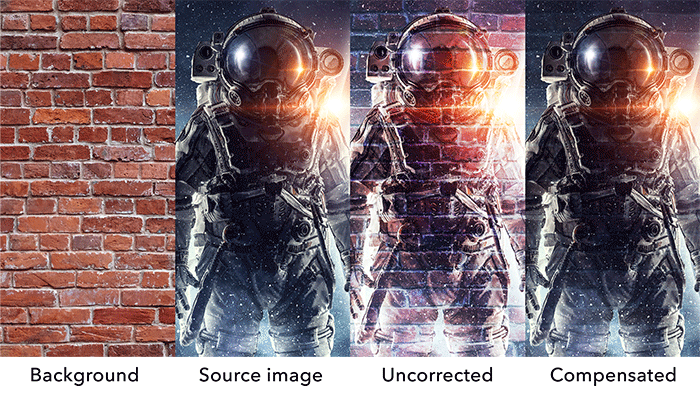

Background compensation1 Need to project on a less-than-ideal background? Using a color camera to detect large contrast differences on your screen or projection surface, Mystique makes automatic adjustments to compensate for visual imperfections such as smudges, dirt or other surface anomalies to provide a more uniform projected image and maintain image fidelity.

Background compensation

1 Requires Mystique Version 2.5 or greater and a single, color camera. Supported projectors: Boxer® 4K30, Mirage 304K, Griffyn® 4K32-RGB, D4K40-RGB, Mirage 4K40-RGB, Mirage SST, and Mirage SST-6P

2 The results will be limited by the lowest-performing projector in the array

​Add the additional security and constant vigilance of Christie Guardian

A powerful optional feature of Mystique Essentials and Pro Venue Editions, Christie Guardian​ constantly monitors a blended projection system for any misalignment. If Guardian detects a misalignment, it automatically calibrates the image in real-time, quickly, invisibly, and without interruption, even when content is playing so audiences are unaware of any problem.

Marked surface alignment

The marked surface alignment feature leverages the pre-set markings on a surface to align the projectors rather than relying on LED or laser-based marker systems. This makes it ideal for applications such as stages for live performances and ice or court projection mapping where the surface has known features such as face-off circles, hash marks and other distinct markings. To make the process even easier, Pro Venue Edition recognizes small changes in the position of the projectors, camera and even the projection surface and automatically resets the alignment to the original position, simplifying and accelerating regular maintenance with the click of a button.​

Supported screen types

Flat

Curved

Playing surface projection mapping

Dome

Wave

Dark ride

Mystique lens and camera options

Mystique - Pro Venue Edition supports a variety of Ethernet* cameras and lens options which are pre-calibrated as a pair to ensure maximum image quality. For help choosing the correct lens and camera pair for your application, use the web calculator.

Lens and camera combinations available
5MP CCD POE Ethernet* camera with 5mm lens** 156-107109-XX
5MP CCD POE Ethernet* camera with 8mm lens** 156-146102-XX
5MP CCD POE Ethernet* camera with 12mm lens** 156-147103-XX
5MP CCD POE Ethernet* camera with 16mm lens** 156-148104-XX
5MP COLOR CCD POE Ethernet* camera with 5mm lens** 156-151108-XX
5MP COLOR CCD POE Ethernet* camera with 8mm lens** 156-152109-XX
5MP COLOR CCD POE Ethernet* camera with 12mm lens** 156-153100-XX
5MP COLOR CCD POE Ethernet* camera with 16mm lens** 156-154101-XX

*Additional networking considerations required for Ethernet camera.
**Note: Camera and lens pair sold separately.

Resources

Web calculator recommends the best lens and camera based on a display's requirements

Taking the next step

Do you have an idea for a spectacular visual experience? Speak with our experts today.​ Get in touch »

Specifications

Time to blend and stack

  • System auto-calibrates in less than two minutes per projector

User interface

  • Microsoft Windows application with step-by-step process and real-time camera feedback

Christie Guardian

  • Optional feature providing constant monitoring and real-time, invisible correction of blended projection systems

Expanded projection array capabilities

  • Allows an unlimited number of projectors to be used in a single array where a single camera is able to see all the projected images in its field of view

Screen type support

  • Flat screens, curved screens with a curvature of up to ± 70 degrees

Portrait display support

  • Projectors in vertical portrait display orientation

Requirements

  • Mystique integrates directly with Christie Twist-enabled 3DLP® and Inspire Series and HS Series 1DLP projectors, or Pandoras Box 6.0 and higher regardless of the projector1
  • Computer with Mystique​ – Pro Venue Edition ​software
  • Connected to CCD camera
  • Network connection between computer and each video projector
  • USB port for Mystique Install license key

1 Blend quality depends on projector quality and cannot be guaranteed for non-Christie projectors

Due to constant research, specifications and features are subject to change without notice.
