科视Christie LX605 3-LCD XGA 投影机 | 科视Christie 视觉解决方案
概述 规格 配件 资源 图片

*此产品已停售。查看科视Christie 现有的投影机产品系列。

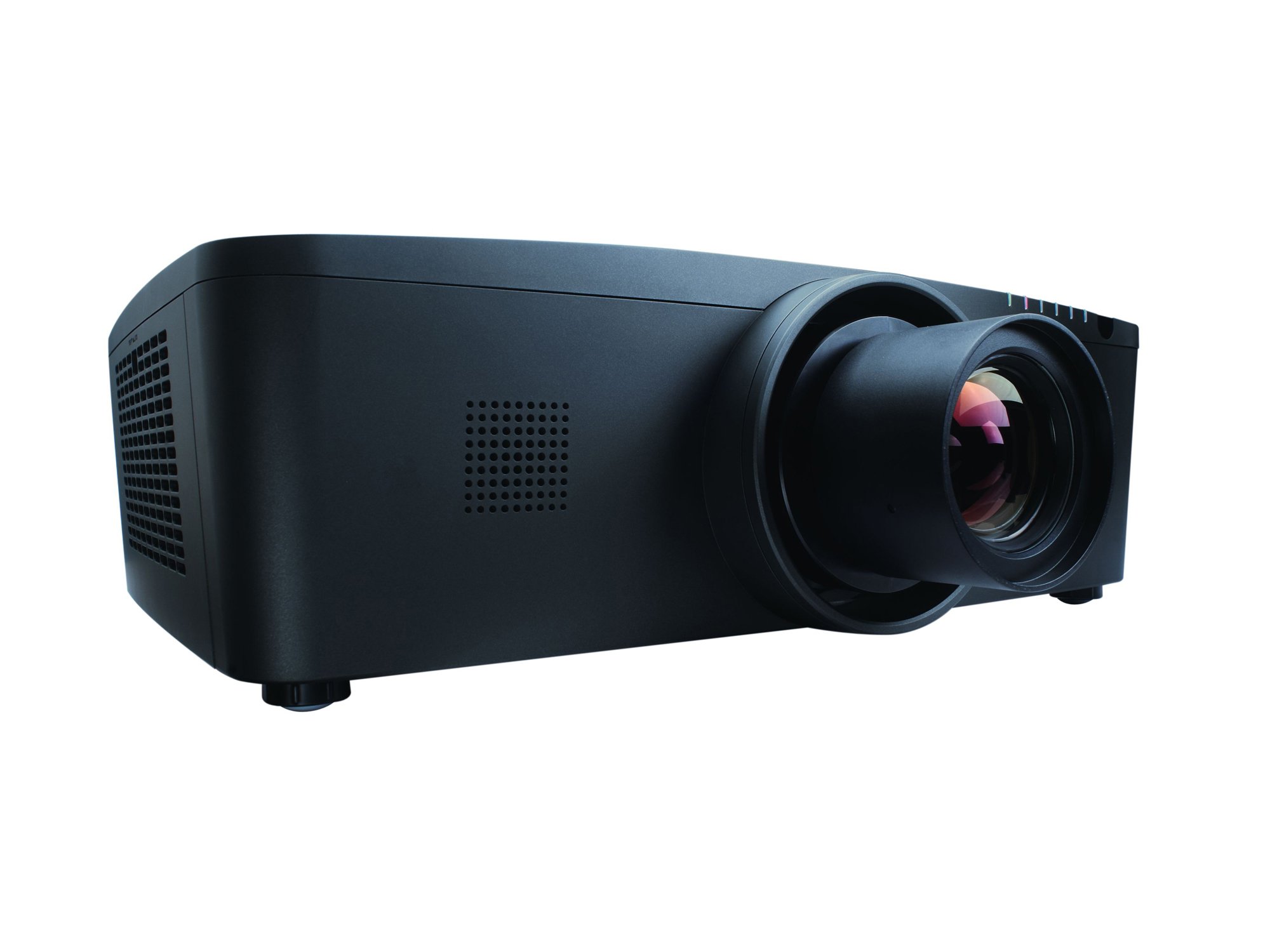

6,000 ANSI 流明科视Christie LX605 LCD 投影机 是众多中大型会场显示的理想之选。科视Christie LX605 支持种类广泛的信号源,以简便安装、高性能和广泛应用为设计宗旨。





技术

3-LCD

分辨率

1,024 x 768 XGA

亮度

6,000 流明

对比度

1,000:1(全开/关)

照明

330W NSHA

灯泡使用寿命

2,000 小时,节能模式下最长 3,000 小时

长度

434.8 mm

宽度

489.5 mm

高度

164 mm

重量

9.7 kg

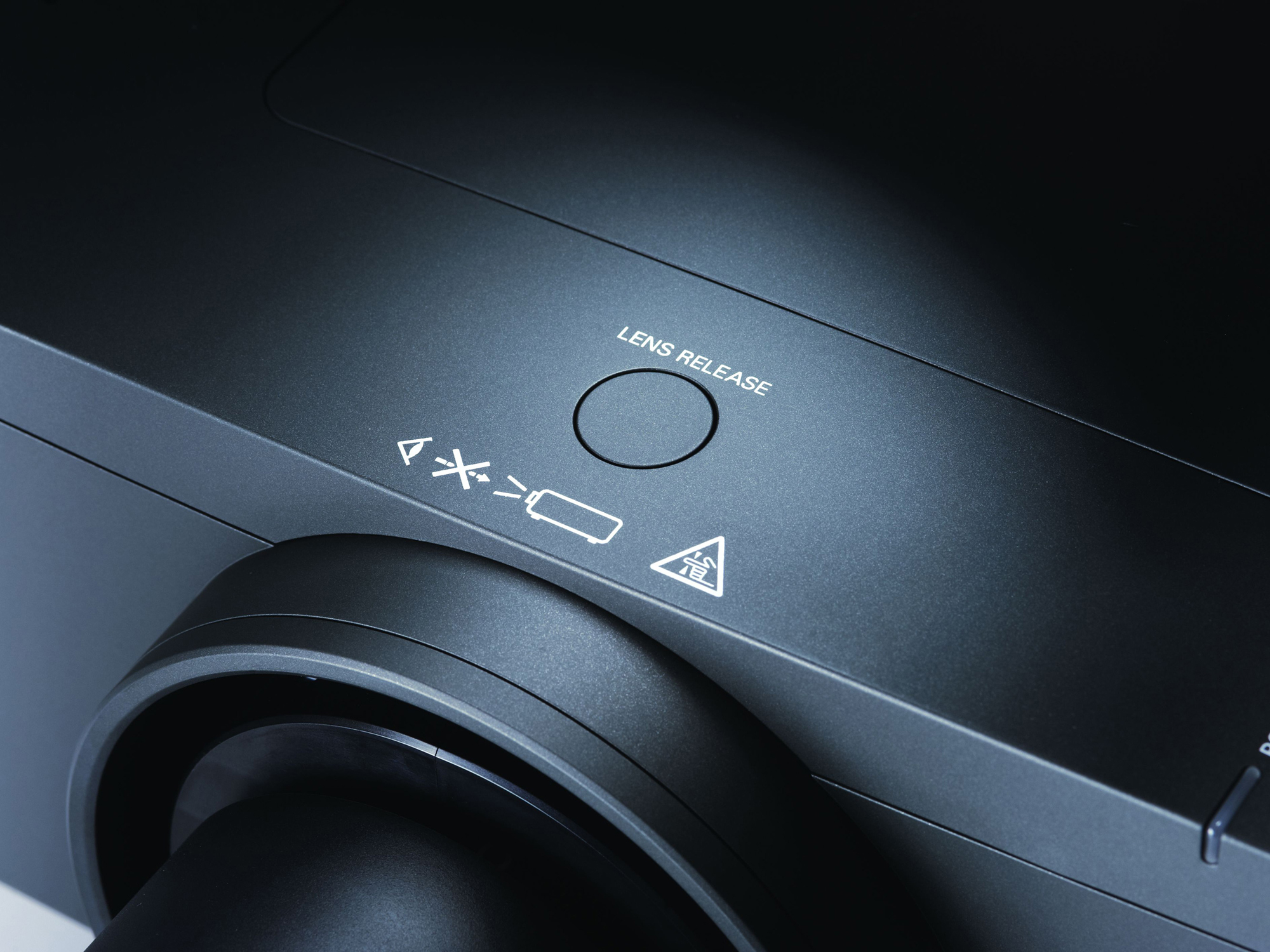

A new four-corner geometry correction tool, 3D Keystone™ technology, puts professional capabilities at your fingertips; quickly overcome installation challenges that can not be corrected by standard digital keystone adjustments. The LX605 has a center lens design with motorized lens shift for easy setup and ships with a standard lens. A suite of four bayonet style lenses are available options.

For quality and dependability the Christie LX605 offers the benefits of long-life inorganic 3LCD technology and 10-bit video processing. These inorganic panels have been designed for improved lifetime performance over conventional 3LCD panels. With a 1000:1 contrast ratio and 10-bit video processing, the Christie LX605 produces natural, smooth color tone to ensure picture stability and flawless video playback… a quality image every time.

Features

  • 6,000 ANSI lumens for high brightness presentation
  • XGA native resolution with scaling for VGA to UXGA and video up to 1080p for compatibility with most computers and video sources
  • 3D Keystone™ technology a new four corner geometry correction tool
  • Built in network port for total network control
  • AutoFilter cartridge reduces time between filter changes for up to 13,000 hours

With all these great features and Christie’s known quality and dependability, the Christie LX605 is sure to become your new LCD standard.

规格


  • - 6,000 ANSI 流明
  • - 1,000:1(全开/全关)
  • - 80% 亮度均匀度(边角到边角)

显示技术

  • 3 x 0.8" 多晶硅 TFT 有源矩阵型无机液晶显示屏
  • XGA 1,024 x 768 分辨率

灯泡

  • 330W NSHA 单灯
  • 典型寿命——正常模式:最长 2,000 小时;节能模式:最长 3,000 小时

信号兼容性

  • - UXGA
  • - WXGA
  • - SXGA+
  • - XGA
  • - SVGA
  • - VGA
  • - MAC
  • - HDTV 格式(720P@60、720P@50、1080i@60、1080i@50、1035i、1080p)

像素时钟

  • 140 MHz(模拟输入)/162 MHz(数字输入 )

扫描率

  • 水平频率:15-100 kHz
  • 垂直频率:48-100 KHz

因持续研发,规格和功能可能随时变更,恕不另行通知。
